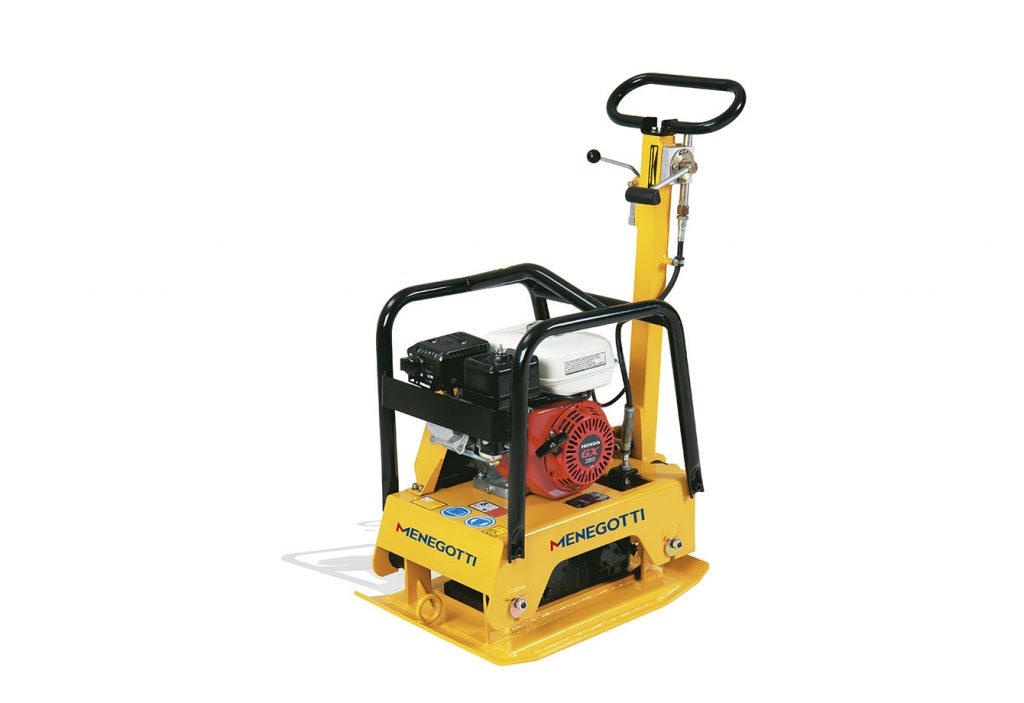

Reversible Plate Compactor MPR 125

Reversible Plate Compactor MPR 125

High performace.

Contact Us

The Menegotti Vibratory Plates are the best option for those seeking a highly resistant product with low maintenance cost. This high performance equipment reduces the impact transfer to the operator, leading to greater comfort, better performance and generation of economy.Ideal for compaction or adaptation of low depth for sandy, clayey or stony land, recommended for leveling paving, revamping asphalt and pavements. It has a water sprinkling system coupled to the cast iron base which reduces the dust caused by execution. A product with an excellent performance for compaction by adaptation. It also has a pad system which reduces the transmission of vibration to the operator. With a low consumption of approximately 1.4l/h it is the most economical of the category.

Type MPR 125
Weight with Engine 126 kg
Dimension L x W x H 750 x 400 x 930 mm
Base Dimension L x W 630 x 400 mm
Working Speed 15-17 m/min
Vibration Frequency 4300 vpm
Compacted Area 500 m2/h
Compaction Depth 300 mm
Centrifugal Force 2500 kgf
Engine Gasoline - 4 stroke - Air Cooling - Honda GX160 5,5 hp Diesel Branco 7 hp
