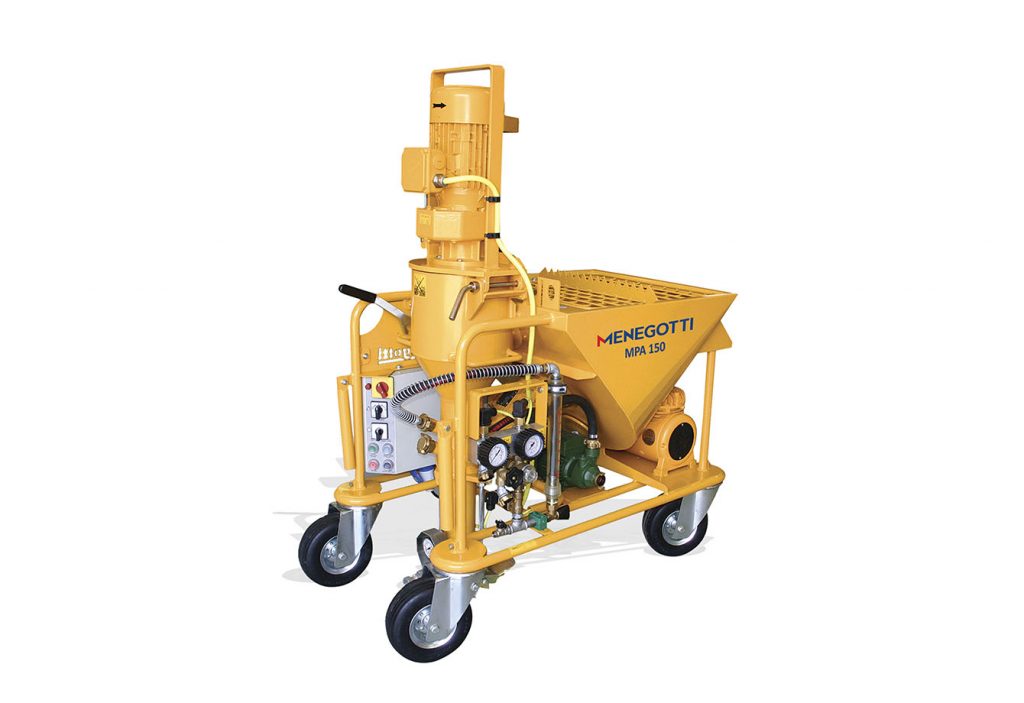

The Projection Line equipment attain extremely high levels of productivity compared with the traditional method improving the cost x benefit ration of their investment a lot, with greater operating speed and less waste of material. They produce a more compact mortar, with a reduced level of cavities due to greater adherence to the surfaces and uniformity in the application through an adjustable flow system and suitable adjustment of the mixture. It projects traditional, industrialized, self-sticking plaster and mortar through specific projection shafts for each type of work: filling, viscous material, finishing plaster and traditional plaster. It has a structure made of coated steel with electrostatic paint highly resistant to bad weather, and automated activation panel, protection system for motors, a pressure gauge for monitoring of pumping, solid rubber wheels and brake. It projects up to 30l/minute at a distance of 20m vertically and 40m horizontally.
Type | MPA 150 |
Mixing Capacity | 150 liters |
Weight | 258 kg |
Dimensions L x W x H | 1150 x 730 x 1450 mm |
Maximum Theoretical Pressure | 30 bar |
Fixed Theoretical Flow | 30* l/min |
Transporting Distance | 20 vertical • 40 horizontal |
Frane | Made of Steel • Painted in powder paint |
Wheels | Rubber - front Brake System |
Engine | 2635 x 2762 x 2043 mm |
Engine | Three Phase • 220 or 380 V • 50 Hz |
