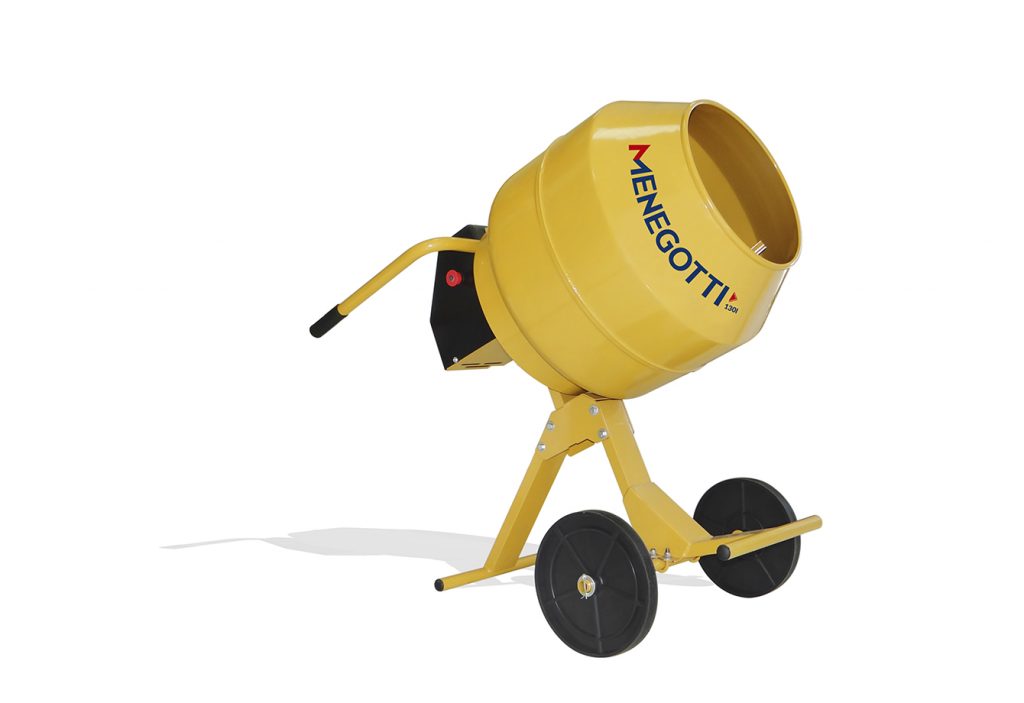

Wheelbarrow Concrete Mixer 130l

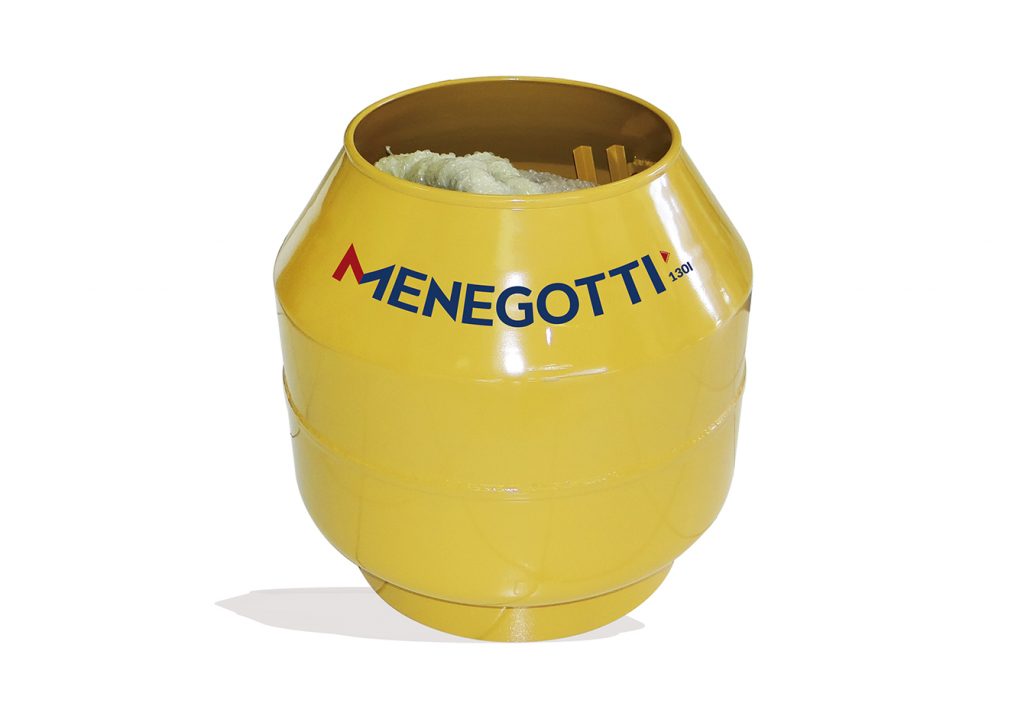

Consisting of a special steel plate stamped drum, the Menegotti Wheelbarrow Concrete Mixer is easy to assemble.

Contact Us

Projected for small jobs.

It is equipment planned to handle economic works with excellent performance and low maintenance. Made of a drum stamped in special steel plate with two mixing blades, electrostatic paint highly resistant to bad weather which provides the equipment with a long useful life, components in highly resistant FC200 cast iron and a bipartite steel case protecting the motor. The drum works by variable inclination conducted through an ergonomic handwheel.

Type 130 liters
Total Volume 130 liters
Mixing Capacity 80 liters
Final Capacity Mixed 65 liters
Number of Cycles/hour 15 c/h
Hourly Production 1,2 mᵌ/h
Drum Rotation 30 rpm - 60Hz
Belt Em “V” 3L-330
Weight without Engine 59 kg
Dimensions (L x W x H) 1199 x 1282 x 722 mm
Wheels Polypropylene
Motor Electric (IP21) • 4 Poles • Single Phase • 1/2 hp • 110/220V
