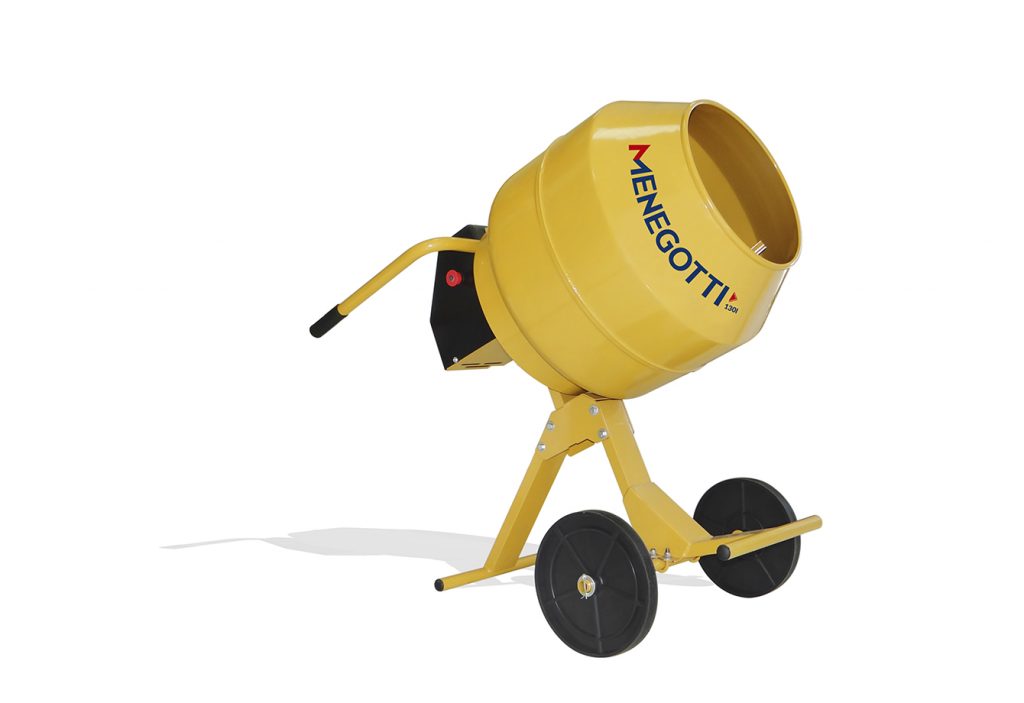

Wheelbarrow Concrete Mixer 130l

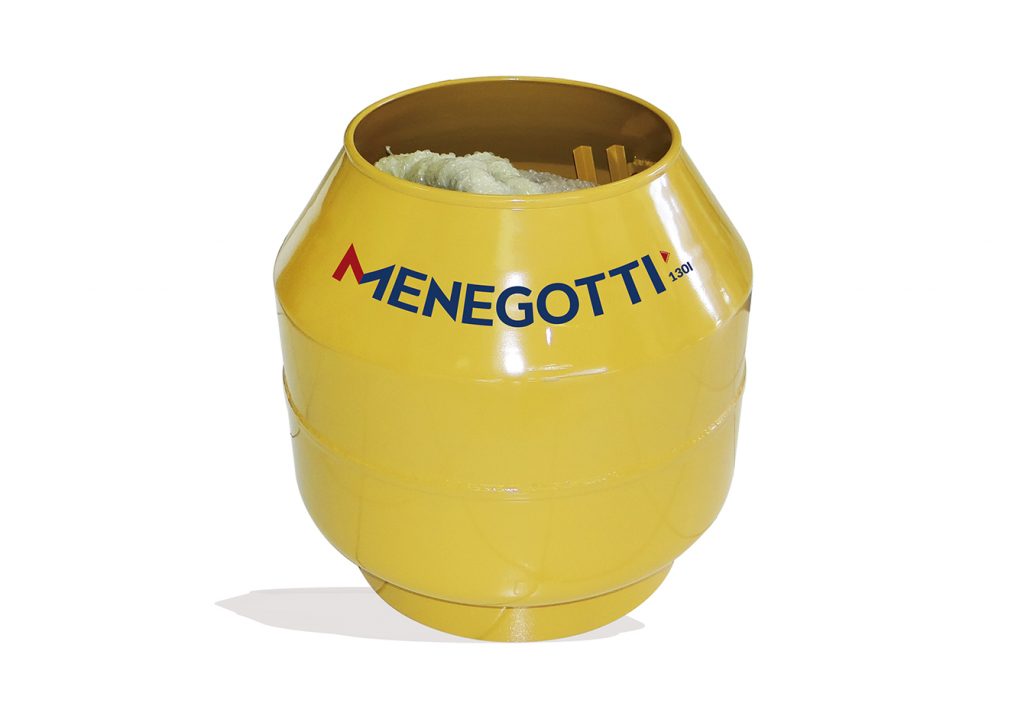

Consisting of a special steel plate stamped drum, the Menegotti Wheelbarrow Concrete Mixer is easy to assemble.
Contact UsProjected for small jobs.
It is equipment planned to handle economic works with excellent performance and low maintenance. Made of a drum stamped in special steel plate with two mixing blades, electrostatic paint highly resistant to bad weather which provides the equipment with a long useful life, components in highly resistant FC200 cast iron and a bipartite steel case protecting the motor. The drum works by variable inclination conducted through an ergonomic handwheel.
| Type | 130 liters |
| Total Volume | 130 liters |
| Mixing Capacity | 80 liters |
| Final Capacity Mixed | 65 liters |
| Number of Cycles/hour | 15 c/h |
| Hourly Production | 1,2 mᵌ/h |
| Drum Rotation | 30 rpm - 60Hz |
| Belt | Em “V” 3L-330 |
| Weight without Engine | 59 kg |
| Dimensions (L x W x H) | 1199 x 1282 x 722 mm |
| Wheels | Polypropylene |
| Motor | Electric (IP21) • 4 Poles • Single Phase • 1/2 hp • 110/220V |
