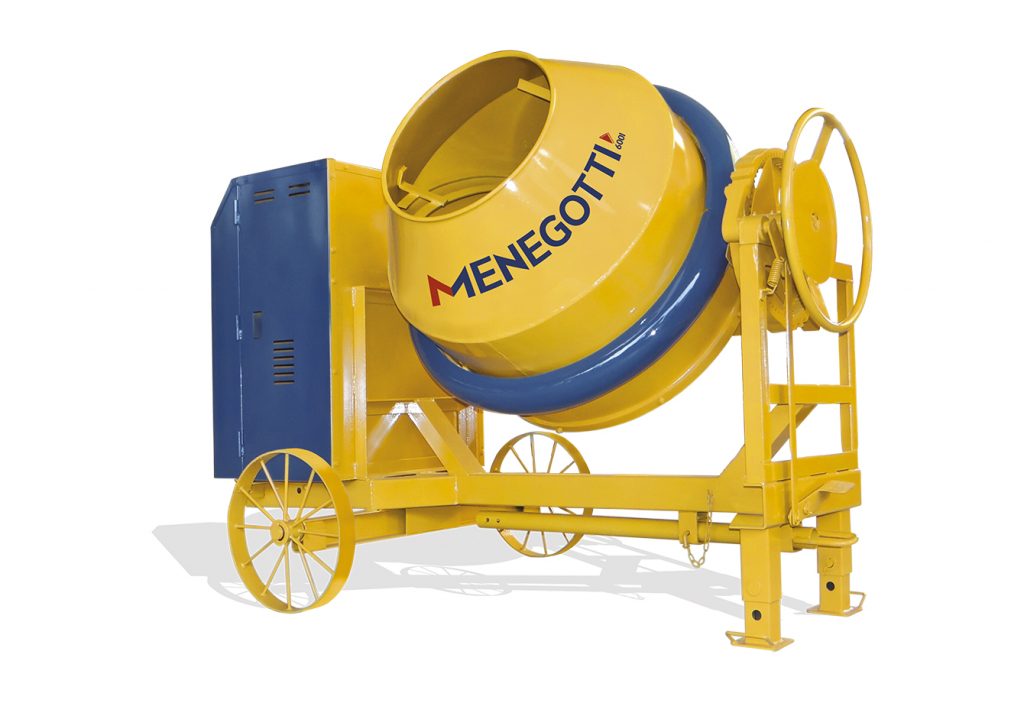

Professional Mechanical Without Skip 600L
Made of 2.0mm thick sheet steel, high strength electrostatic paint, FC200 high strength cast iron components, gear teeth gearbox, 6-part rack, flywheel with strain relief system, pulley spokes 5 ways. The line has capabilities: 400 and 600 liters (mechanical and semi hydraulic).
Contact UsMade of 2.0mm thick sheet steel, high strength electrostatic paint, FC200 high strength cast iron components, gear teeth gearbox, 6-part rack, flywheel with strain relief system, pulley spokes 5 ways. The line has capabilities: 400 and 600 liters (mechanical and semi hydraulic).
| Total volume | 600 liters |
| Mixing Capacity | 440 liters |
| Final Capacity Mixed | 400 liters |
| Number of Cycles/hour | 15 cyclos/hour |
| Hourly Production | 7.0 m3/h |
| Drum Rotation | 30 rpm (60Hz) | 28 rpm (50Hz) |
| Belt | “V” A-90 |
| Weight without Engine | 580 kg |
| Dimensions (charger lowered) | 2263 x 1380 x 1715 mm |
| Wheels | 13" Pneumatic Rim |
| Opitions (engine) | Electric- 4 Poles Three Phase - 7.5hp Gasoline - 4 Stroke Air Cooling - 13hp Diesel - 4 Stroke Air Cooling - 10 hp |
