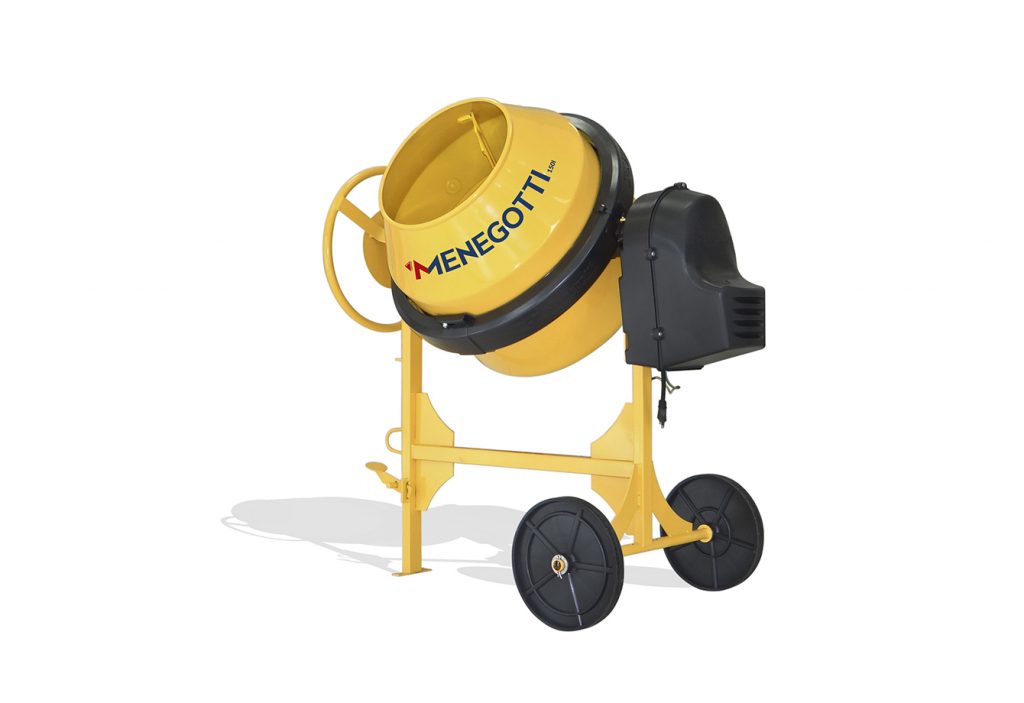

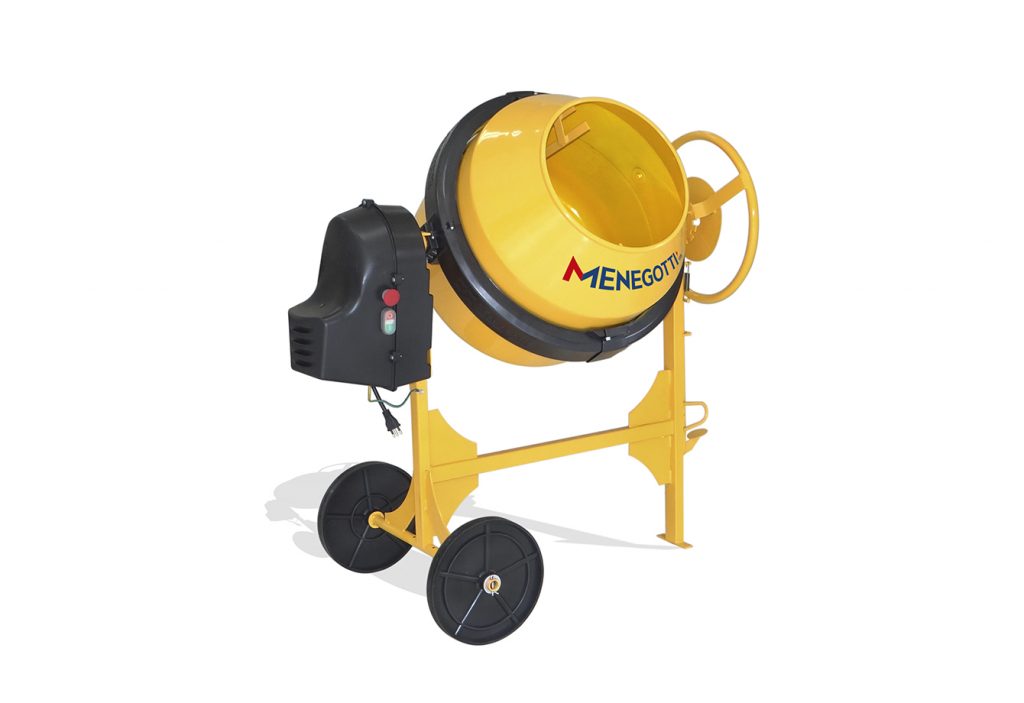

Prime Concrete Mixer 150l
The Concrete Mixers Prime Menegotti are durable and indicated for small projects. This equipment is economical, made to measure for those seeking efficiency with low investment.
Contact UsConsisting of a special steel plate stamped drum with two mixing blades, highly weather resistant electrostatic painting providing long service life to the equipment, highly resistant FC200 cast iron components and bipartite steel motor box. The drum works by variable tilt led through an ergonomic steering wheel
| Type | 150 liters |
| Total Volume | 150 liters |
| Mixing Capacity | 90 liters |
| Final Capacity Mixed | 75 liters |
| Number of Cycles/hour | 15 c/h |
| Hourly Production | 1,35 mᵌ/h |
| Drum Rotation | 28/30 rpm - 50/60Hz |
| Belt | Em “V” 3L-230 |
| Weight without Engine | 60 kg |
| Dimensions (L x W x H) | 1196 x 745 x 1310 mm |
| Wheels | Polypropylene |
| Rack Protection | Polypropylene |
| Electrical Protection | |
| Engine | Electric (IP00) • 4 Poles • Single Phase • 1/2 hp • 110/220V |
| Engine (Optional) | Electric (IP00) • 4 Poles • Single Phase ⅓ hp • 220/380V |
