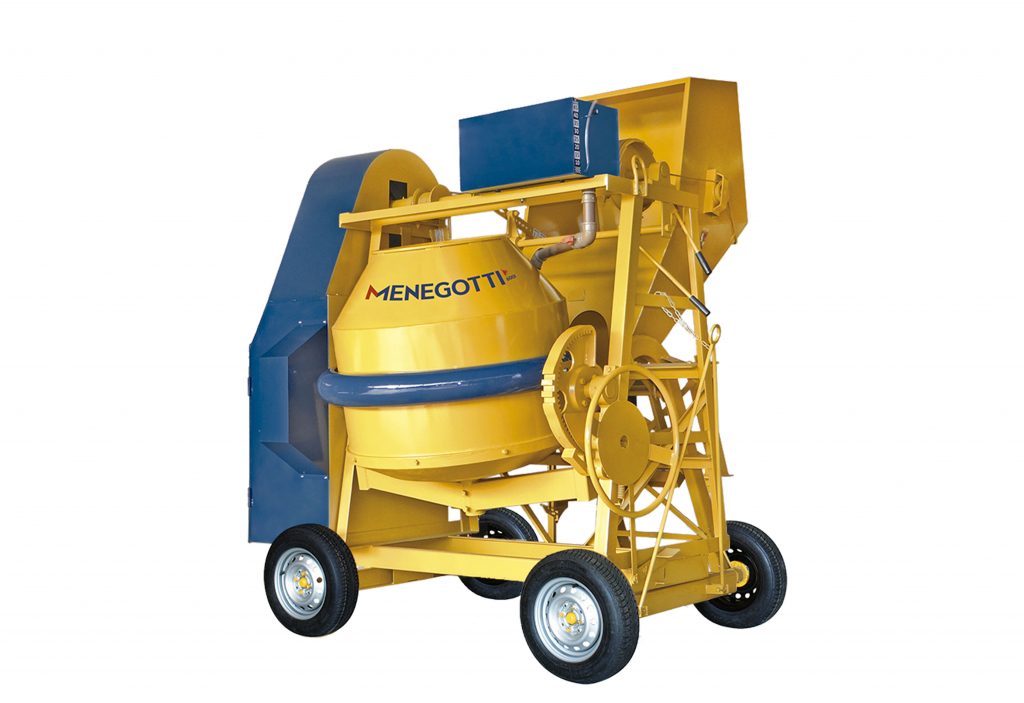

Mechanical with Skip Professional Concrete Mixer 600l

Made of 2.0mm thick sheet steel, high strength electrostatic paint, FC200 high strength cast iron components, gear teeth gearbox, 6-part rack, flywheel with strain relief system, pulley spokes 5 ways. The line has capabilities: 400 and 600 liters (mechanical and semi-hydraulic).

Contact Us

For those seeking an economical and resistant product, this equipment is ideal. The Mechanical Professional Concrete Mixers 600l have high performance, low maintenance, are reliable and ideal for large production volumes. It is equipment suited to producing large volumes of concrete. Ideal for large construction projects, leasing segment, cement artifact factories and constructors in general. Manual tilting of drum, loader with hydraulic activation and case protecting the motor with openings for ventilation, oil tank and hydraulic pump protected by the motor case, reinforced steel tube drawbar. The raising of the loader occurs through hydraulic system monitored by pressure gauge.

Type 600 liters
Total Volume 600 liters
Mixing Capacity 440 liters
Final Capacity Mixed 400 liters
Number of Cycles/hour 15 ciclos/hour
Hourly Production 7,0 m3/h
Drum Rotation 30 rpm (60Hz) | 28 rpm (50Hz)
Belt “V” A-96
Weight without Engine 958 kg
Dimensions L x W x H (charger lowered) 2398 x 3765 x 2390 mm
Dimensions L x W x H (charger loader) 2398 x 1900 x 2800 mm
Wheels 13" Pneumatic Rim
Rack Protection Fibra
Engine Electric (IP55) • 4 Poles Three Phase • 7,5 hp • 220/380V Gasoline • 4 Stroke • 13 hp • Air Cooling - 3600 rpm Diesel • 4 Stroke • 10 hp • Air Cooling • 3600 rpm
Wheels Steel Plate
