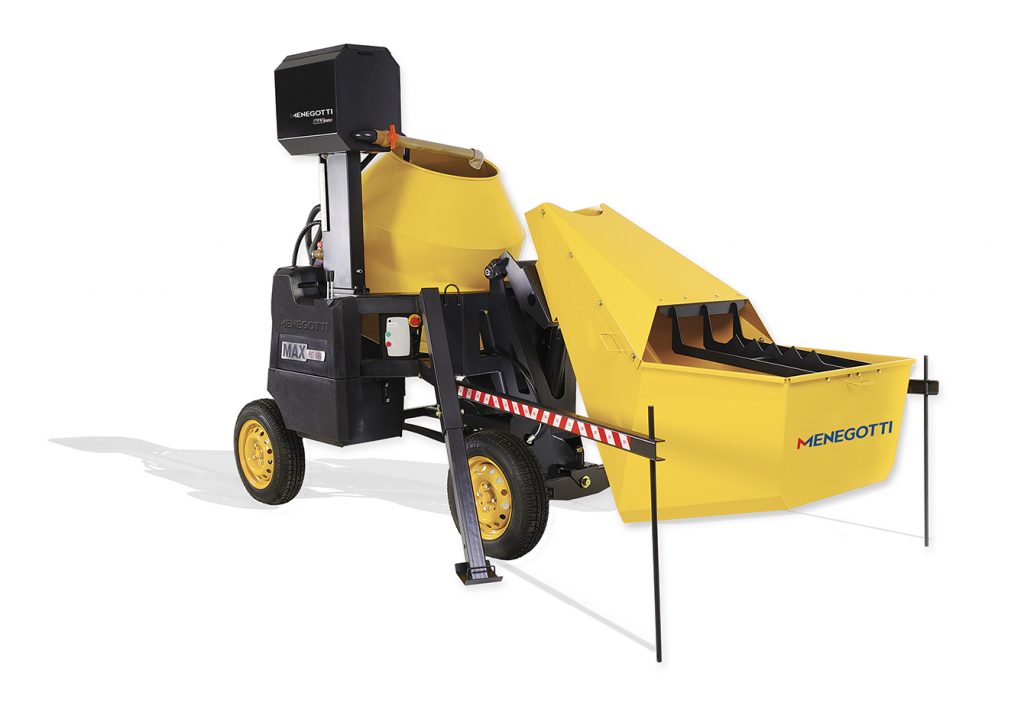

Hydraulic Concrete Mixer Max 600 HD

This equipment is developed to realize all the commands by means of a totally hydraulic system, operated through a central of operation, bringing numerous ergonomic benefits, without physical effort to the operator. The bucket and drum movement are fully hydraulic.

Contact Us

The Concrete Mixer MAX 600 is the concrete mixer of the category which has least machine time stoppage reduction, total control of water dosage with window of levels and fine adjustment of flow, centralized operating and command control, fully hydraulic system of tilting bucket and drum, loader with disassemblable peripheral protection, pneumatic wheels with 13″ rim, fully free of racks, oscillating direction system which absorbs vibrations considerably reducing wear and maintenance, compact dimension and central position between shafts reducing the possibility of blows during transportation, electrical activation with full protection device and emergency stop, devices fully protecting the emergency stop, protection devices in the operating area, with 4 fastening shoes ensuring greater stability during operation.

Type 600 liters
Total Volume 600 liters
Mixing Capacity 450 liters
Final Capacity Mixed 400 liters
Number of Cycles/hour 15 ciclos/hour
Hourly Production 7,0 m3/h
Drum Rotation 30 rpm (60Hz) | 28 rpm (50Hz)
Weight without Engine 950 kg
Dimensions L x W x H(charger lowered) 3280 x 1940 x 2270 mm
Dimensions L x W x H(charger loader) 2495 x 1940 x 3065 mm
Wheels 13" Pneumatic Rim
Rack Protection Fibra
Engine Electric - 7,5 hp - 220/380V - FC Din - Diesel - Toyama - 10 hp - TD 100F - Gasolina - 13 cv - Honda GX 390 Electric Cable  5 m - 380V - Pino N4279 - 32A, 3P + T Electric Cable 5 m - 220V - Pino N4076 - 16A, 3P + T
