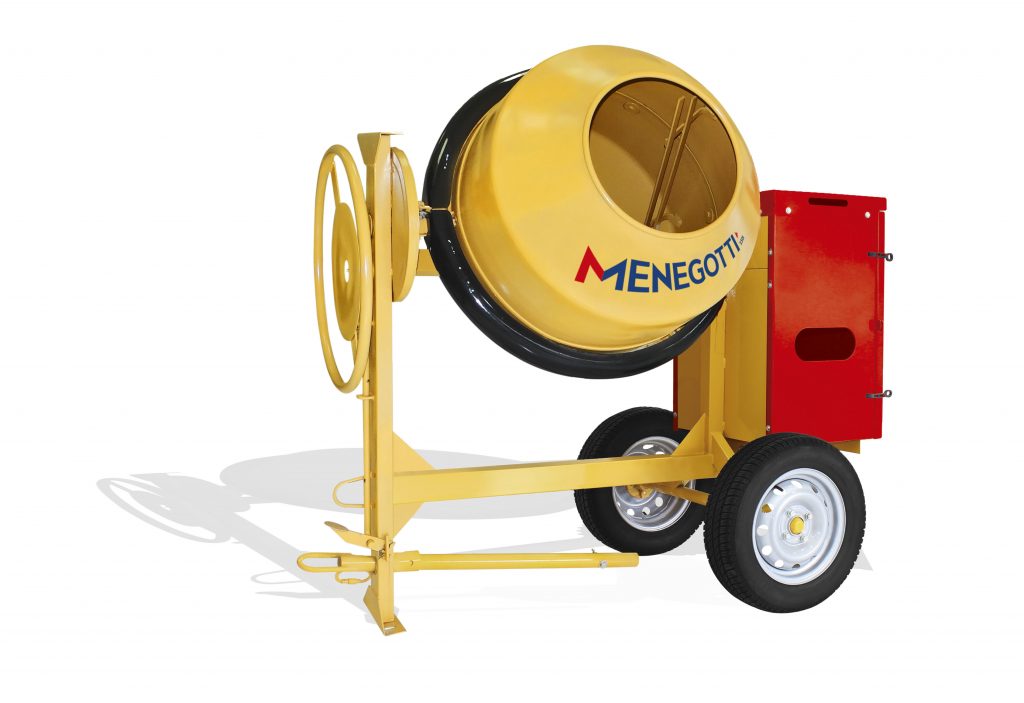

Concrete Mixer Rental 250l
Made of special stamped steel drum with 2,66mm thickness, three mixing blades, high strength electrostatic paint, high strength FC200 cast iron components and split steel motor protection box. The drum operates by variable inclination driven by an ergonomic steering wheel.
| Type | 250 liters |
| Total Volume | 250 liters |
| Mixing Capacity | 200 liters |
| Final Capacity Mixed | 175 liters |
| Number of Cycles/hour | 15 ciclos/hour |
| Hourly Production | 3,0 m3/h |
| Drum Rotation | 30 rpm (60Hz) | 28 rpm (50Hz) |
| Belt | “V” A-46 |
| Weight without Engine | 148 kg |
| Dimensions L x W x H | 1588 x 900 x 1463 mm |
| Wheels | 13" Pneumatic Rim |
| Rack Protection | Polypropylene |
| Engine | Electric (IP21) - 4 Poles Single Phase • 1 hp • 110/220V Three Phase • 1 hp • 220/380V Gasoline • 4 Stroke • Air Cooling • 5,5 hp • 3600 rpm Diesel • 4 Stroke • Air Cooling • 5 hp • 3600 rpm |
| Wheels | Steel Plate • 13" Pneumatic Rim |
