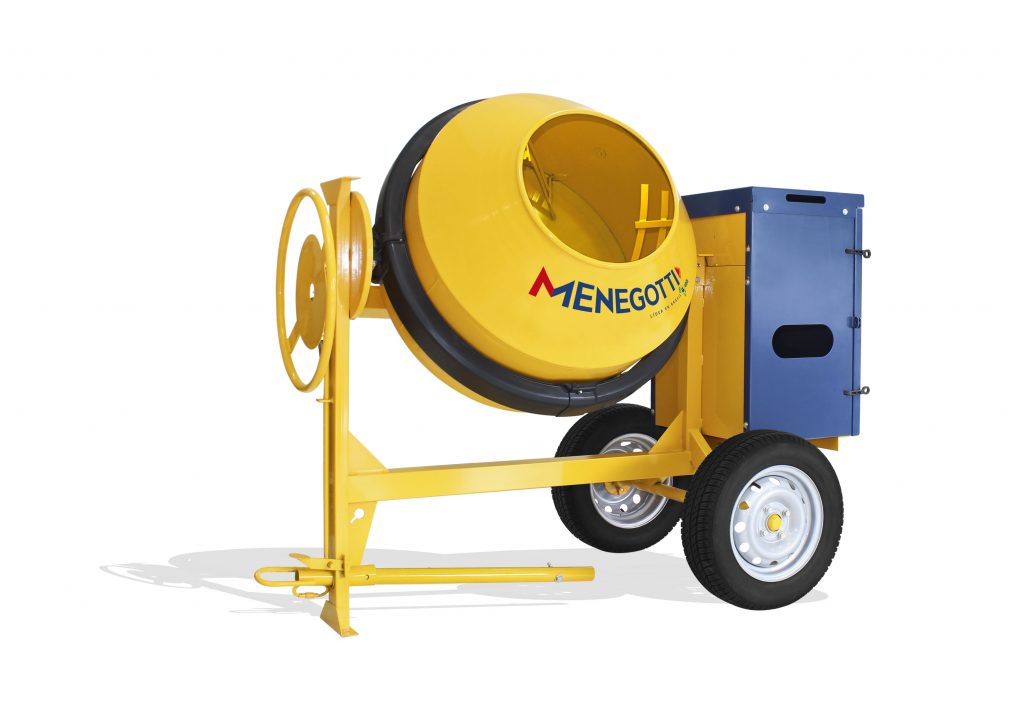

Concrete Mixer Professional 400l
Made of 2.0mm thick sheet steel, high strength electrostatic paint, FC200 high strength cast iron components, gear teeth gearbox, 6-part rack, flywheel with strain relief system, pulley spokes 5 ways.
Contact UsIt is equipment planned for varied production capacity, handling small and large works. Ideal for use of self-employed professionals and cement artifact companies. The concrete mixer 400 liters is made of a drum with steel plate 2.0 mm thick, electrostatic paint highly resistant to bad weather, components in highly resistant FC200 cast iron, reducer composed of a gear with internal steel tooth, rack segmented into 6 parts, handwheel with force reducing system and pulley with 5 arms.
| Type | 400 liters |
| Total Volume | 400 liters |
| Mixing Capacity | 310 liters |
| Final Capacity Mixed | 270 liters |
| Number of Cycles/hour | 15 ciclos/hour |
| Hourly Production | 4,65 m3/h |
| Drum Rotation | 30 rpm (60Hz) | 28 rpm (50Hz) |
| Belt | “V” A-48 |
| Weight without Engine | 167 kg |
| Dimensions L x W x H | 1836 x 1012 x 1461 mm |
| Wheels | 13" Pneumatic Rim |
| Rack Protection | Polypropylene |
| Engine | Electric (IP21 • 4 Poles Single Phase • 2 hp • 110/220V Three Phase • 2 hp • 220/380V Gasoline • 4 Stroke • 5,5 hp • Air Cooling - 3600 rpm Diesel • 4 Stroke • 4 hp • Air Cooling • 3600 rpm |
| Wheels | Rubber • 68 mm |
